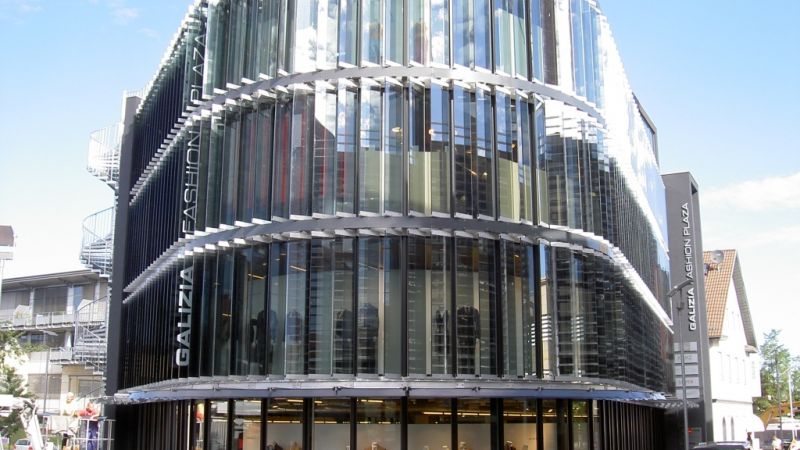

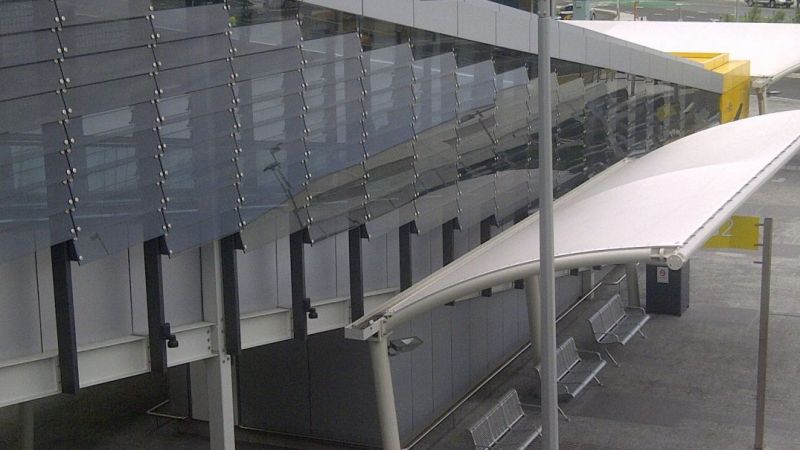

Shadoglass glass louvred solar shading system

Shadoglass is an external fixed or moveable glass louvred solar shading system, designed to reduce heat gains and glare whilst maximising the use of natural daylight.

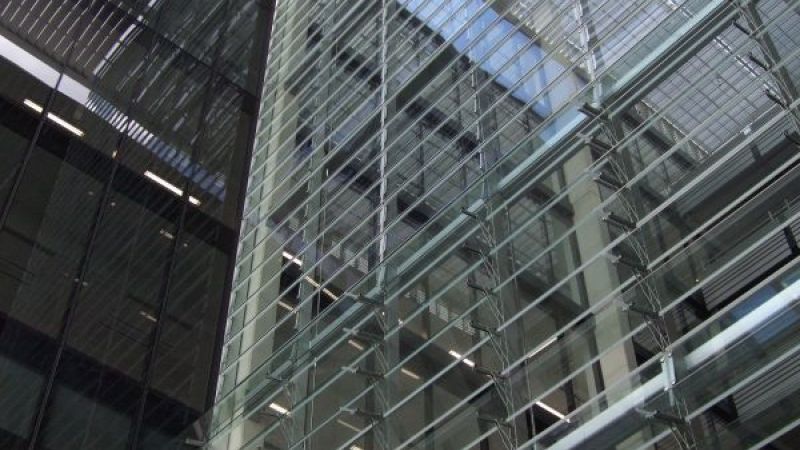

Shadoglass may be installed either vertically or horizontally in front of the façade or on the roof. It can be either fixed or moveable. It is also suitable as a primary or secondary facade element to provide ventilation.

Product information

Features and benefits

A wide range of louvres – Shadoglass louvres are available in various colours, surface finishes and coatings to meet specific design requirements. Depending on the chosen type of glass, frit or film, the desired transmission of light and/or heat radiation can be accurately achieved for every specific application. The louvre spans depends on structural considerations and the kind of louvre blade selected. Click the options tab above to find out more.

A wide range of carrier systems - The various Shadoglass carrier systems are suited for use with glass, metal, fabric, wood and translucent acrylic louvres, as well as photovoltaic cells (see our Shadovoltaic page for further information).

Flexible controls - Shadoglass shading systems can be operated by linear actuators that have the capability to operate complete facades. A series of louvres are attached to a system of levers and push rods which link them to a control system. The louvres may be fixed at any angle and can rotate under motorised control within a range of up to 90⁰.

Robust - Shadoglass is made from high grade aluminium and stainless steel. The system is designed to compensate for thermal expansion.

Potential to reduce installation time – Shadoglass can be provided in modular pre-assembled form.

Generic types

Shadoglass has five basic carrier systems - click the options tab above to find out more:

Shadoglass LS-1 is centrally pivoted, intended for wide spans, and incorporates a central aluminium torsion tube incorporating the louvre brackets along the length of the louvre for additional support.

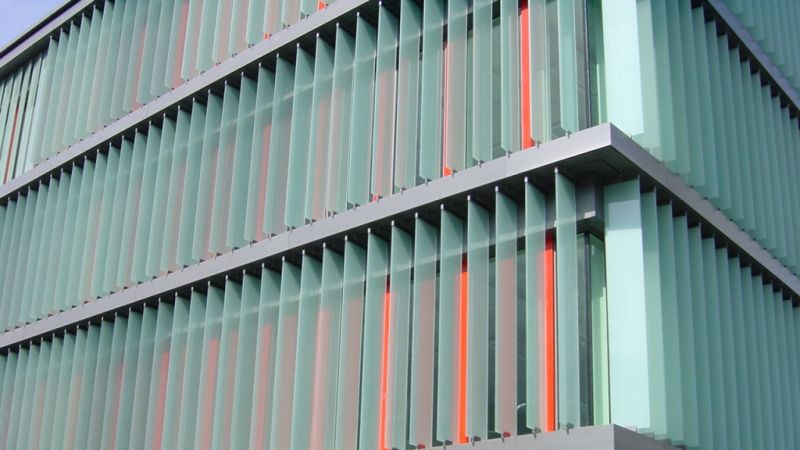

Shadoglass LS-2 is primarily intended for small spans or where frequent anchor points are available. It provides minimum obstruction to the glass area, thereby maximizing daylight and enhancing the view to the outside.

Shadoglass LS-3 is centrally pivoted, intended for very wide spans. An aluminium clamping system is fixed along to the short edges of the louvre blades.

Shadoglass LS-4 is a back hinged system with hidden control mechanisms integrated within the main vertical supports. This enables a seamless continuous appearance when viewed from the outside, since the supports are installed to the back of the louvres.

Shadoglass LS-5 is a centre pivoted system which provides maximum transparency. An aluminium clamping system is fixed along to the short edges of the louvre blades.

Controllable versus fixed louvres and control routines

A fixed solar shading system may only truly be effective on a south facing building.

Controllable solar shading systems can better optimise the flows of heat and light energy than fixed solar shading systems. Since the louvres are designed to follow the path of the sun, daylight levels may be optimised whilst radiation levels are reduced to a minimum. The likelihood of over-shading or under-shading that frequently occurs with fixed solar shading is reduced, since the louvres are always set to optimum shading angle.

An additional benefit of movable systems is that when they are closed, they can provide additional security and can help reduce winter heat loss.

Colt ICS 4-Link or Soltronic are the standard controls for Shadoglass. These provide accurate control of the louvre blades, continually calculating the position of the sun and together with internal temperature and lighting sensors controlling the position of the louvres. On dull days, light sensors can operate to fully open the louvres to allow the occupants full vision to the outside at all times. Remote operation is also available via an internal modem interface.

Design service

We can assess a client’s design and provide a bespoke solution to meet all aspects of a project. Backed by an experienced technical support team, we can work with the customer from the earliest stages of the project to design an aesthetically pleasing, high performance solar shading system.

We also offer complete project management, installation, wiring and commissioning, which means that we take complete responsibility to ensure that the product is in full working order within one package of works.

Please contact us for more information relating to the application, specification, installation or servicing of Shadoglass.

Options

Description

Colt Shadoglass is an external fixed or moveable glass louvred solar shading system, designed to reduce heat gains and glare whilst maximising the use of natural daylight.

System types (for sizes, see bottom of this page)

  • LS-1 is centrally pivoted, intended for wide spans, and incorporates a central aluminium torsion tube incorporating the louvre brackets along the length of the louvre for additional support.
  • LS-2 is primarily intended for small spans or where frequent anchor points are available. It provides minimum obstruction to the glass area, thereby maximizing daylight and enhancing the view to the outside.
  • LS-3 is centrally pivoted, intended for very wide spans. An aluminium clamping system is fixed along to the short edges of the louvre blades.
  • LS-4 is a back hinged system with hidden control mechanisms integrated within the main vertical supports. This enables a seamless continuous appearance when viewed from the outside, since the supports are installed to the back of the louvres.
  • LS-5 is a centre pivoted system which provides maximum transparency. An aluminium clamping system is fixed along to the short edges of the louvre blades.

Structural considerations

  • All spans subject to wind load calculations. Deflection of the louvre is limited to span / 100. Deflection of supporting structure is limited to span / 100.

Modular/ breakdown

  • Modular
  • In breakdown

Configuration

  • Horizontal
  • Vertical

Fixed/moveable

  • Fixed
  • Moveable

Glass types - consider these aspects

  • Type
  • Colour
  • Thickness
  • Polish
  • Frit
  • Tint
  • Edge treatment
  • Interlayer

All spans subject to wind load calculations. Deflection of the louvre is limited to span / 100.

Deflection of supporting structure is limited to span / 100.

Controls options (if moveable)

  • Manual
  • ICS 4-Link
  • Soltronic

Angle of rotation: 0–90°

Installation

  • Onto concrete
  • Onto brickwork
  • Onto steelwork
  • Into curtain walling

Colours of metal work

Bracing struts / side support arms:

  • Mill finish
  • Polyester powder coated
  • Anodised

Key characteristics of each type

Shadoglass LS-1

All LS-1 types centre hinged

Type LS1-55:

  • Glass louvre width: 350–500 mm.
  • Glass louvre length: max. 2500 mm.
  • Vertical supports at 2500 mm maximum centres.

Type LS1-65A:

  • Glass louvre width: 350–550 mm.
  • Glass louvre length: max. 3300 mm.
  • Vertical supports at 3300 mm maximum centres.

Type LS1-65B:

  • Glass louvre width: 420–600 mm.
  • Glass louvre length: max. 3000 mm.
  • Vertical supports at 3300 mm maximum centres.

Shadoglass LS-2

  • Glass louvre width (maximum): 550 mm.
  • Glass louvre length: max. 2500 mm.
  • Vertical supports at 2000 mm maximum centres.
  • Centre hinged

Shadoglass LS-3

  • Blade length: For glass, maximum 4000 mm long without any additional supporting structure.
  • Blade width: For glass, maximum 600 mm.
  • Centre hinged

Shadoglass LS-4

  • Blade span: For glass, up to 1800 mm long without any additional supporting structure. Maximum overall glass length 3600mm (if supported).
  • Blade width: For glass, minimum 350mm, maximum 550mm.
  • Blade thickness: For glass, minimum 12mm, maximum 24mm.
  • Back hinged

Shadoglass LS-5

  • Blade span: For glass, up to 1800 mm long can be achieved without any additional supporting structure.
  • Blade width: For glass, up to 600 mm.
