What are the considerations when designing a solar shading system?

Solar geometry

The sun rises in the East and sets in the West. The sun travels in an arc, reaching its highest altitude in the South (for the Northern hemisphere).

Solar Geometry

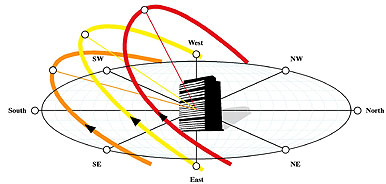

Orange line - Solar Altitude for 21st December

Yellow line - Solar Altitude for 21st September

Red line - Solar Altitude for 21st June



An important requirement of the design process is to ensure the building is shaded from the sun for as many hours as possible throughout the whole day, during the course of the entire year. However a balance must be achieved in order to ensure that the level of natural light entering the building is not unacceptably reduced.

South facing façades

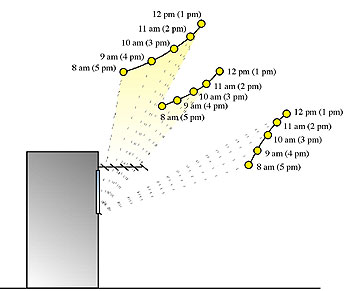

For a predominately south facing façade, a small amount of solar shading can be achieved using a fixed horizontal brise soleil.

South Facing Façades

In the mornings and winter such a device cannot stop direct rays of the sun penetrating the building since the sun is much lower. However the heat gain and solar glare is greatly reduced in winter and therefore this may not considered to be a major problem.

East or West facing façades

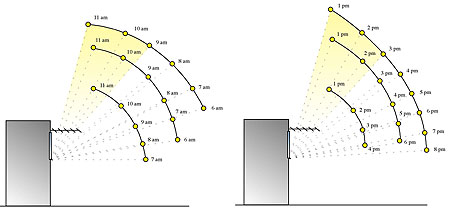

With a predominantly East or West facing façade, a fixed system will not perform well throughout the whole day as the altitude of the sun is much lower. Sunlight will pass directly under most horizontal shading systems as shown in the illustration below.

East or West Facing Façades

To overcome this problem, effective solar shading can be achieved using a movable solar shading system.

Controllable fins, unlike fixed, can hang vertically in front of a window and still optimise solar shading and visibility thanks to specially written computer software which ensures that the louvers follow the path of the sun.

Controllable solar shading systems enable the building to react to the changes in the weather and to the sun's position so as to optimise the flows of heat and light energy through the façade. This in turn has a positive effect on reducing the heat load and glare, and enhancing the use of natural daylight, thereby reducing the operating costs of the building.

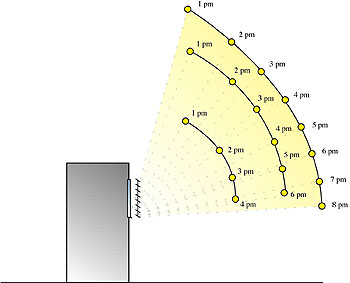

Controllable VSA

Controllable solar shading systems reduce the likelihood of over-shading or under-shading and will result in optimum shading angle at all times.

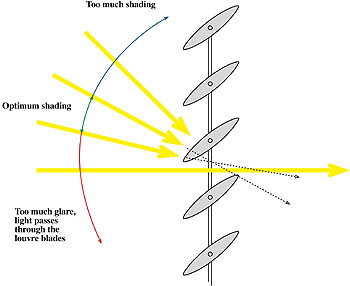

Optimum shading angle
