Ellisse solar shading shutter system

Ellisse is an extruded aluminium panelised sliding shutter system that offers architects and builders a versatile and practical solution to managing solar radiation and aiding privacy, whilst adding a modern architectural aesthetic.

Product information

Features and benefits

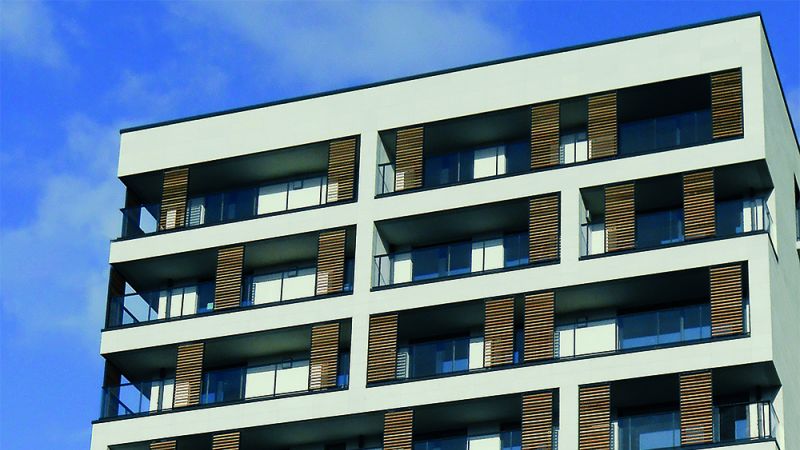

A wide range of system types - Ellisse can slide, hinge vertically, hinge horizontally or stay static. A wide range of louvre types are available, including extruded or sheet aluminium, Western red cedar or glass. The louvres inside the frames are able to be turned to a maximum of 85° by hand.

Robust - Ellisse is made from high grade aluminium and stainless steel and if the louvres and frames are operable, they are pivoted in UV-stable bushes and rollers. The system is designed to compensate for thermal expansion and is low in maintenance.

Potential for reduced installation costs – Ellisse can be provided in modular pre-assembled form.

Controlling Ellisse - The louvres and frames are operated either manually or by an electric actuator within a continuously sliding rail which is available in virtually any size. They can also be automated by a Colt sun tracking system such as ICS 4-Link or Soltronic.

We are at your service

We provide a pre-order design service. We also offer complete project management, installation, wiring and commissioning, which means that we take complete responsibility to ensure that the product is in full working order within one package of works.

Please contact us for more information relating to the application, specification, installation or servicing of this product.

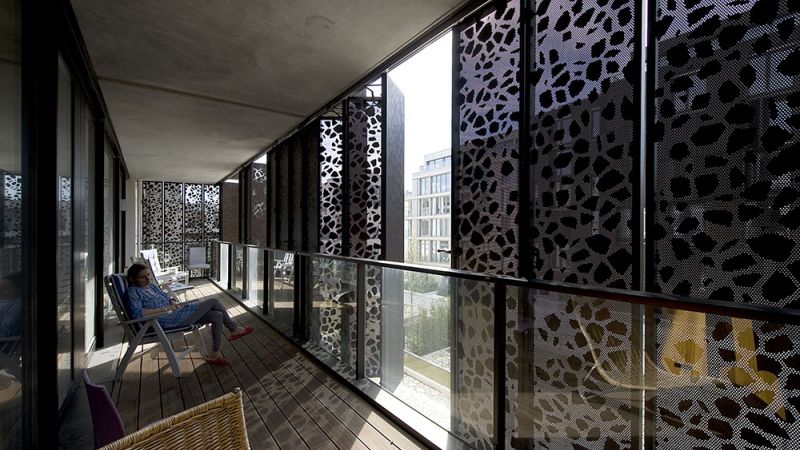

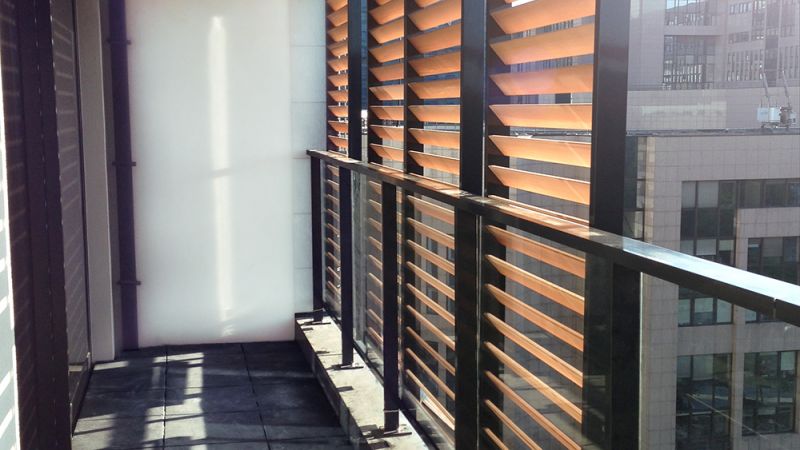

Sliding shutter system designed to reduce solar heat gain and to add seclusion to balconies and terraces.

Panel movement

  • Fixed panel
  • Slideable panel

Louvre movement

  • Louvres fixed within the panel
  • Louvres able to be rotated by hand within the panel

Louvre types

  • Elliptical extruded aluminium, either 60, 90 or 115mm wide

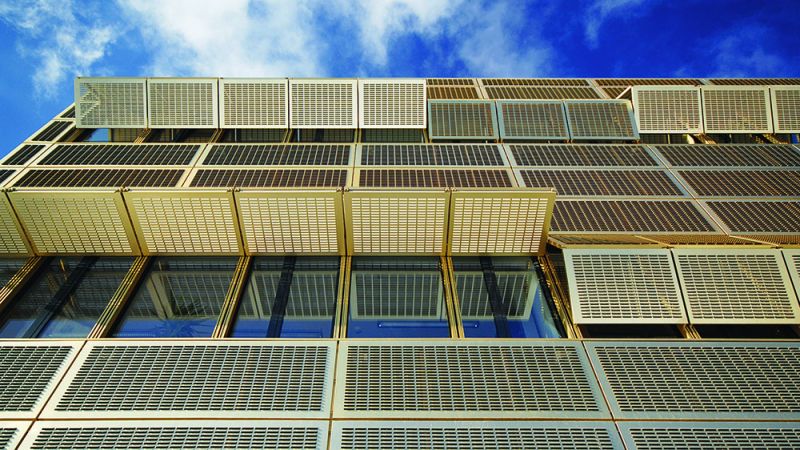

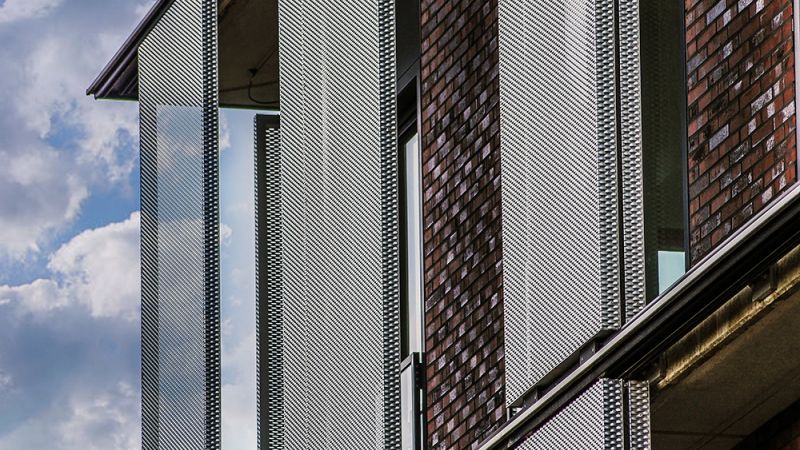

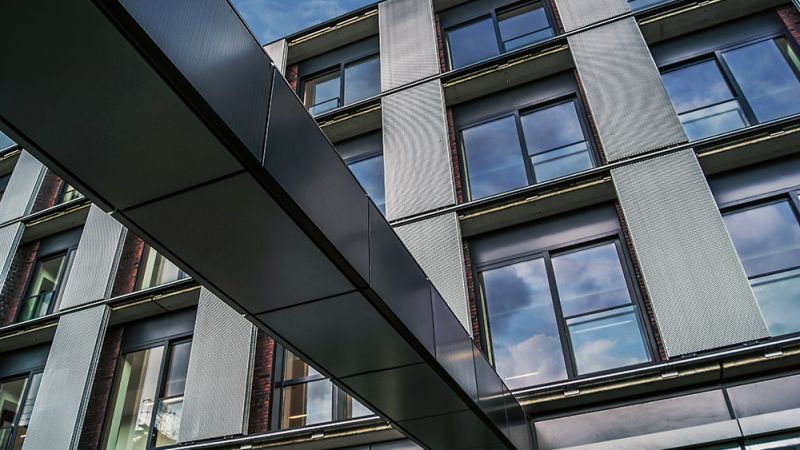

  • Perforated fabricated metal sheet


  • Maximum outside frame size: 1200 mm wide x 3500 mm high

Colours/ finishes options

  • Mill finish
  • Polyester powder paint to a RAL colour, standard 75 mu
  • Anodised
